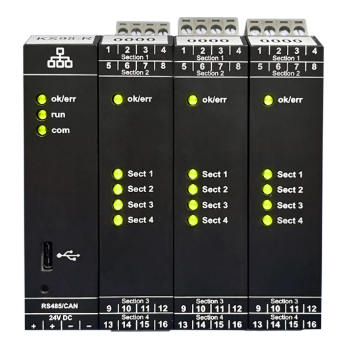

KS 98-Rail Multi-function Controller

KS 98-Rail

Versatile Hardware
Experience unparalleled precision with our state-of-the-art KS98-Rail process controller. The KS98-Rail is a top hat rail mountable, behind-panel process control and data acquisition system based on the KS98-2 system design. This device ensures constant optimal performance and directly supports most sensors and galvanic isolations, eliminating the need for additional signal transmitters. Say goodbye to extra costs and complexity and trust the KS98-Rail to deliver a seamless, cost-effective solution that elevates your application to the next level.

Comprehensive Programming
The KS98-Rail offers a user-friendly graphical engineering tool with embedded process simulation, making application programming straightforward and efficient. The function-block editor, complete with a library of control functions, allows you to compile, test, and optimize your control strategies. Streamline your workflow and achieve optimal performance quickly, making the KS98-Rail an ideal solution for the process industry.

Remote or Connected Access
Using the KS98-Rail's remote access capabilities, maintain and troubleshoot with ease. Connect via a network or USB front interface to perform fast parameter adjustments and identify issues promptly. This feature ensures efficient maintenance, reducing downtime and enhancing overall productivity.

Flexible Control System
Engineered for top hat rail mounting, the KS98-Rail is a highly versatile process automation system. Its flexible inputs and outputs adapt to the unique needs of any application. With optimized functionality, reliability, and cost-effectiveness, the KS98-Rail is the perfect foundation for any automation solution.

Scaling & Linearization of Measured Signals
Self-Tuning Controllers: Auto/Manual, Parameter-Set, Setpoint Selection & Limitation Functions
Modular Programmer: Multiple recipes, Auto/Manual operation, Master/Slave tracks, and more
Math & Logic Functions
Datalogger & Event Logger Functions: Record process values and events over time with timestamp
Clock Functions
Flexible I/O with Ethernet Communication: Supports up to 60 control loops and 15 I/O slots, complementing PLC systems.
Measurement Accuracy & Proven Control Algorithms: High precision and reliability in process control.
Fully Modular, Expandable & Scalable System: Ready to meet the demands of tomorrow.

Product Category:	Multi-loop Controller
Dimensions and size:	99m x 22.5mm x 111mm (HxWxD) each module
Connectors:	Plug-in screw terminals, Plug-in spring clamp terminals
Primary Input Type:	Universal (TC, RTD, DC linear mA/mV)
Other Inputs:	External setpoint, Ratio input, High impedance voltage, Potentiometer input, Digital input, Mathmatical functions
Output Type:	Analog - linear mA & linear VDC (bipolar), SSR driver, Digital, 24 VDC transmitter power supply
Max. Number of Outputs:	11
Scan Time:	100 ms
Number of Programmer Segments:	> 1000
Control Type:	Fully programable. Includes 2-point (on/off), continuous PID control, or 3-point stepping, cascade, ratio etc
Power Supply:	Low Voltage Supply 24 VDC: 24VDC (+25%-20%) Power Consumption: Approx. 20W (fully equipped)
Communications:	Ethernet - Modbus TCP, RS485 - Modbus RTU, USB, CAN
Panel Sealing:	IP20
Certifications:	CE, cULus
Software Tools:	Engineering Tool ET/KS 98-2 Simulation SIM/KS 98-2
